Artikelnummer: CP213-xxxx   Series/Model:

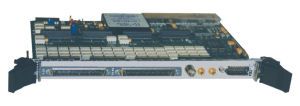

Analog Eingang und Digital I/O Karte CP213 für cPCI / PXI

Hauptproduktmerkmale

• 32, 64 or 128 channels of analog input
• 16 multi-function digital I/O (TTL) channels that may be configured as digital in, digital out, or selectively attached to 2 frequency in, 2 counter in, and/or 2 timer out channels
• 16-bit resolution
• Programmable gain per channel
• Programmable scan rates of <1 S/s through 100 kS/s
• Optional 10 Hz to 1 kHz low pass filters
• Precision on-board reference for end-to-end calibration

 The CP213 is a single-width, 6U, CompactPCI/PXI module with either 32 or 64 differential analog input channels that can alternately be configured under software control as 64 or 128 single-ended analog input channels. A 16-bit ADC scans each channel at a scan rate chosen by the user. The number of channels scanned and scan rate are software selectable. Scans may be triggered from either the internal clock, one of eight PXI backplane triggers, the PXI star trigger bus or an external SMB connector on the module front panel. Single and continuous scan operations are supported. If single scan operation is chosen, an interrupt may be generated at the end of the scan.

Anwendungsbeispiele

• Temperature measurements
• Gerneral-purpose data acquisition
• Powertrain/engine testing
• Automatic Test Equipment (ATE)
