Order-No. CBE-022-000   Series/Model: Cobra Express 22G8

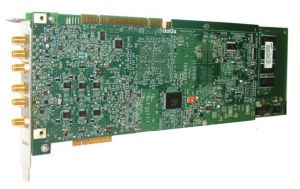

8 Bit PCI Express Gen-2 Digitizer with 1 x 2 GS/s or 2 x 1 GS/s and up to 8 GS Memory

Main Product Features

• 1 or 2 digitizing channels
• 1 or 2 GS/s maximum sampling rate per channel
• 8 bits vertical resolution
• up to 8 GS on-board acquisition memory
• Up to 1 GHz bandwidth
• PCI Express 2.0 x8 card
• Full-featured front-end, with software selection of all signal conditioning settings
• Ease of integration with External or Reference Clock In and Clock Out, External Trigger In and Trigger Event Out Programming-free operation with GageScope® oscilloscope software
• Software Development Kits available for LabVIEW, MATLAB, C/C# and more
• Dual-port memory and data streaming at up to 3.1 GB/s on PCI Express models
• Custom FPGA firmware available



The Cobra CompuScope family of high-speed 8-bit digitizers provide a powerful combination of speed, memory, and bandwidth as well as a wide portfolio of advanced acquisition features on a single PCI Express or PCI card.

Possible transfer speeds in the PCIe:

PCI Express (PCIe) x8 (8 Lane) Gen-2 (Version 2.0): 3.1 GB/s
PCI Express (PCIe) x8 (8 Lane) Gen-1 (Version 1.0): 1.5 GB/s
PCI Express (PCIe) x4 4 Lane) Gen-1 (Version 1.0): 1 GB/s
PCI Express (PCIe) x1 (1 Lane) Gen-1 (Version 1.0) 245 MS/s

eXpert Realtime On-Board Options:

eXpertTM Real Time Data Streaming
eXpertTM Signal Averaging

Application:

• Time-of-flight (TOF) Messungen
• Wideband Signal Analysis
• RADAR Design and Test
• Signals Intelligence (SIGINT)
• Ultrasonic Non-Destructive Testing
• LIDAR Systems
• Communications
• Optical Coherence Tomography
• Spectroscopy
• High-Performance Imaging
• Time of Flight
• Life Sciences
