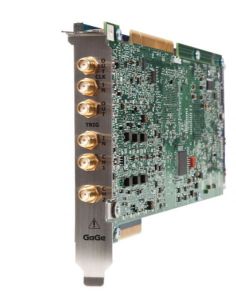

Ultra Fast 8-bit Digitizer, 1x4 GS/s or 2x2 GS/s Sampling Rate up to 16GS Memory

Order-No.: CXE-024-000   Series/Model: CompuScope Express 24G8

8 Bit, 4 GS/s Ultra HighSpeed Digitizer with up to 16 GS Memory

Main Product Features

• 1 and 2 channel Digitzer (Software selectable)
• 1 x 4 GS/s oder 2 x 2 GS/s Sampling Rate
• 8 bits vertical resolution
• 16 GS on-board acquisition memory
• 1.5 GHz bandwidth
• Full-size, PCI Express 2.0 x8 card
• Full-featured front-end, with software selection of all signal conditioning settings
• Ease of integration with External or Reference Clock In and Clock Out, External Trigger In and Trigger Event OutProgramming-free operation with GageScope® oscilloscope software
• Software Development Kits available for LabVIEW, MATLAB, C/C# and more
• Dual-port memory and data streaming at up to 3.1 GB/s
• Custom FPGA firmware available

The CobraMax CompuScope family of GaGe ultra high-speed 8-bit digitizers provides the most powerful combination of speed, memory, and bandwidth as well as a wide portfolio of advanced acquisition features on a single PCI Express or PCI card.

Reatime eXpert On-Board Options:
• eXpertTM Real Time Data Streaming
• eXpertTM Signal Averaging

Applications:

• Time-of-flight (TOF) Messungen
• Wideband Signal Analysis
• RADAR Design and Test
• Signals Intelligence (SIGINT)
• Ultrasonic Non-Destructive Testing
• LIDAR Systems
• Communications
• Optical Coherence Tomography
• Spectroscopy
• High-Performance Imaging
• Time of Flight
• Life Sciences
